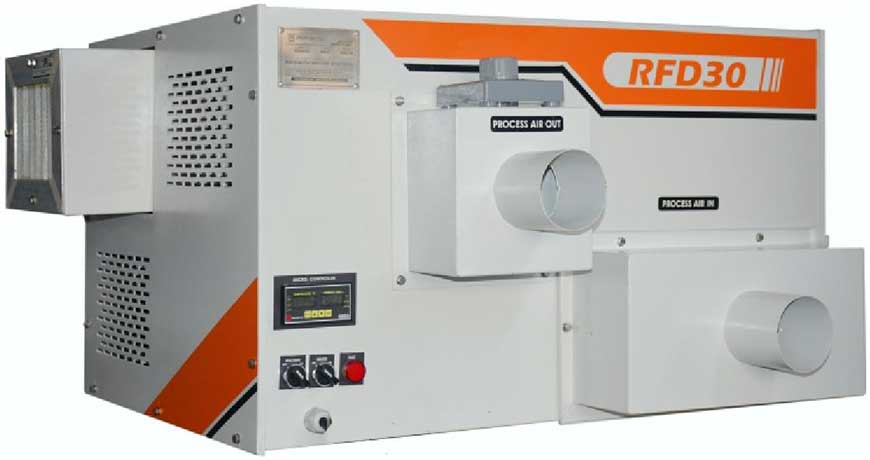

Compact Dehumidifier

Product Description

Dehumidifier unit complete with desiccant rotor section fitted with our rotor drive, regeneration module with electric heaters, G4 grade regeneration filter and reactivation fan and motor assembly. The desiccant wheel is constructed from a unique high temperature substrate media corrugated and impregnated with a non-migrating water selective low temperature regenerating desiccant which will have positive sealing between process and reactivation airstream to allow independent airflows.

Operating Principle

REHOBOTH dehumidifiers operate on the principle of adsorption of water vapor from the air. The desiccant used is silica gel,which is formed on an inorganicsubstance.
The desiccant and substrate are arranged in a wheel-shaped rotor matrix having thousands of small parallel air passages extending through its thickness.
The desiccant rotor is housed in a cabinet that is separated into process and reactication sections. In the process section, moist air passes through the rotor, and the silica gel adsorbs the moisture.
To drive the absorbed moisture out of the desiccant, the rotor slowly rotates into the reactivation section, where a second heated air stream passess through the rotor.The hot air heats the desiccant, driving the water out of it.The moisture-laden reactivation air is usually exhausted outside. The reactivated desiccant rotor rotates back into the process section to provide continuous drying ofthe process air.
In many applications, the process air is cooled before entering the desiccant rotor to enable the system to produce dry air.
The reactivation air stream may be heated by electrical heaters or any other source of heat depending on the application and available utilities.

Rehoboth Compact Dehumidifier

RCD 030

RCD 060

RCD 100

RCD 150

RCD 200

Product Range

Available in 5 models, 300-2000 CMH supply air,
Highly efficient solid desiccant fluted wheel
PLC or relay based control choice
G4 grade on both air streams side
Robust industrial duty structural frame and panel design
Highly compact design - lowest foot print area
Fully factory assembled
Reduced installation time on site and costs
Uprated supply airflow capacity and higher available static pressure available
Stainless steel sheet metal casing (optional)

TECHNICAL DATA - REHOBOTH COMPACT DEH(RCD)
DEH MODEL	Process air				Reactivation air					Dimensions			Weight
	Air Flow:-		Fan Details:-		Air Flow		Fan Details		Heater	Length	Width	Height	Weight
	CMH	CFM	Static Pr(Pa)	Motor (HP)	CMH	CFM	Static Pr(Pa)	Motor (HP)	(KW)	mm			kg
RCD 30	CCC	180	150	0.25	100	60	100	0.25	3.5	600	600	1000	150
RCD 60	DCC	360	200	0.5	200	120	150	0.5	7	700	700	1200	150
RCD 100	CCCC	600	200	1	300	180	150	1	12	800	800	1300	180
RCD 150	CDCC	900	200	2	500	300	150	1	18	950	950	1600	200
RCD 200	CCCC	1200	200	2	700	420	150	1	24	1000	1000	1700	225

AHU Units have 415v/30/50 Hz Supply , RCD 30 is having single phase 220v Supply

Some of the Industrial Applications-

Food

Production & packing of Biscuit, Cookies, Candies, Chocolate, Chewing gums, Chips, Conveying of dried Milk, Coffee, cereals, sugar, dried energy/health drinks, Tea/herbs drying, Brewery, Cold Rooms, Frozen food processing areas, Loading docks, Dried fruit/vegetables, Seed drying & storage,Yeast making

Pharmaceuticals

Soft gelatine capsule drying, manufacturing and packing areas of Effervescent, Hygroscopic salts/powders, Vitamins, Tablet coating, Aseptic manufacturing and packing areas

Paper & Printing

Libraries, Archives storage, Paper pre-conditioning, Gravure printing, Currency printing, Paper fibre moulding

Electrials & Electronics

HT Transformer and Capacitor manufacturing HV cable wrapping, Clean spaces for Semiconductor manufacturing, PCB assembly, Lithium batteries

Automotive

Glass lamination, Radial tyre creel room, Engineering plastic components, Engine test room

Corrosion Prevention

Storage of military equipments, Leather, Precision components, Power plant lay up, Water and sewage treatment plants

Mould & Fungus Prevention

Schools, Assembly areas, Theatres, Restaurants, Hotels, Hospitals, Cargo protection

Condensation Prevention

Injection and blow moulding, Ice skating rinks, Surface preparation & coating
